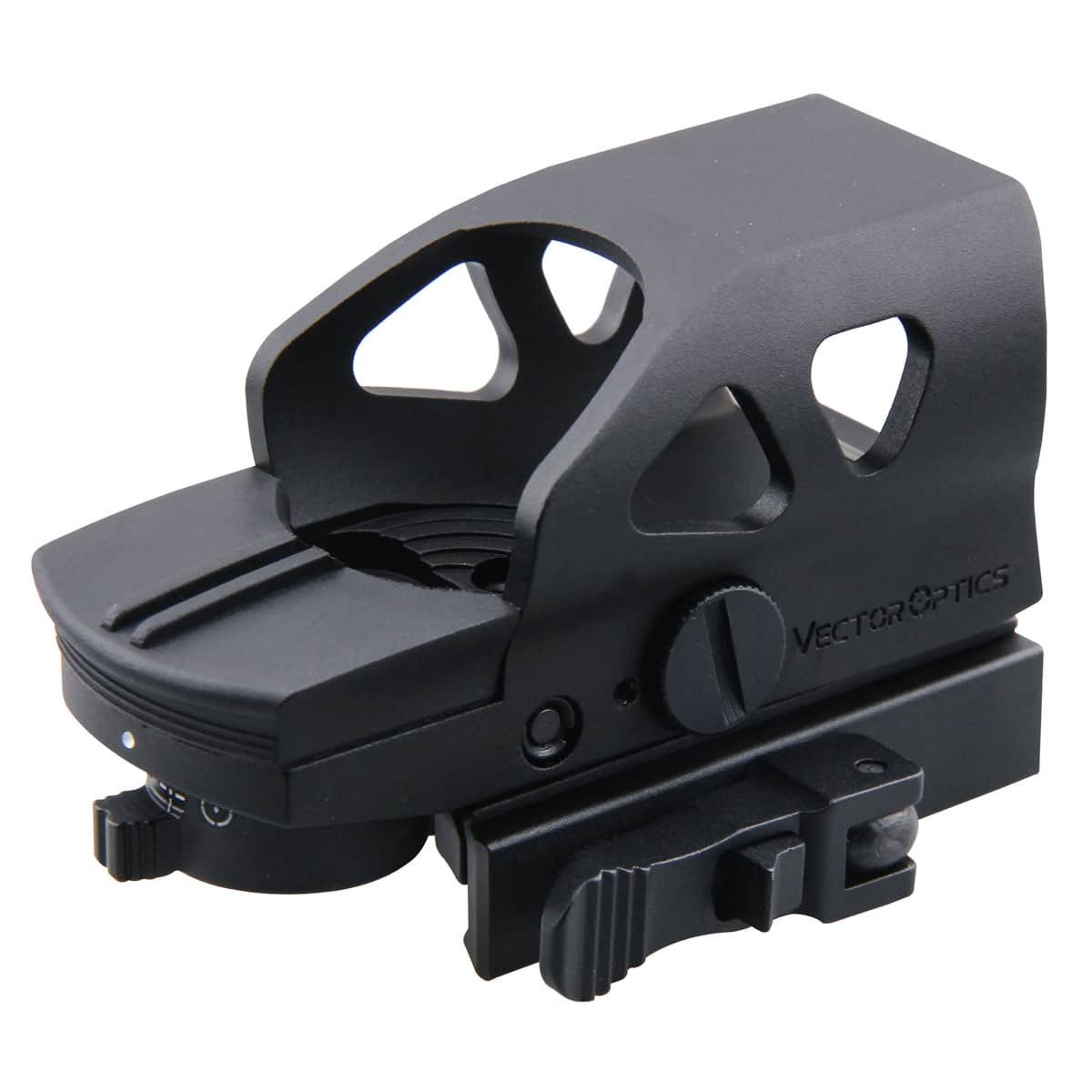

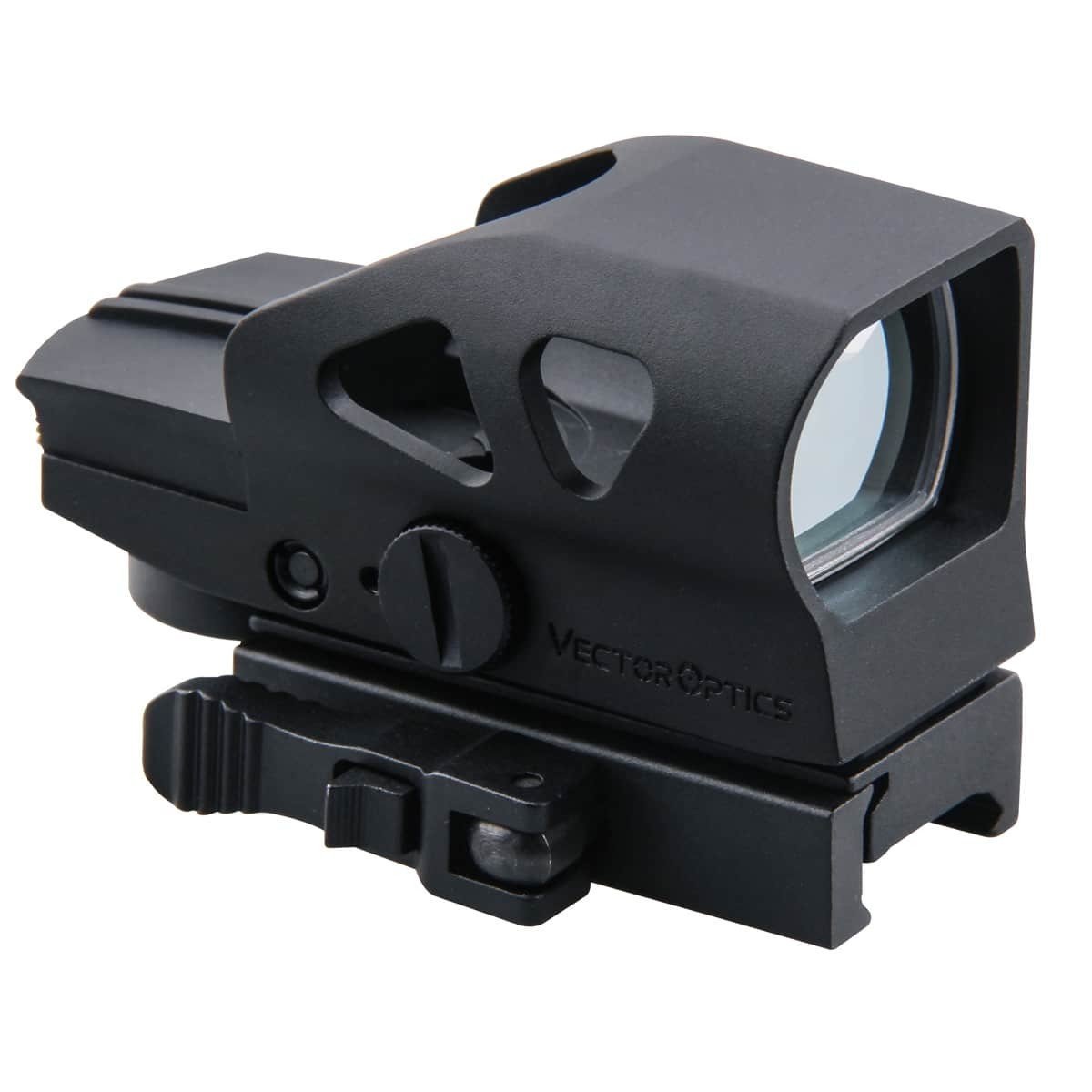

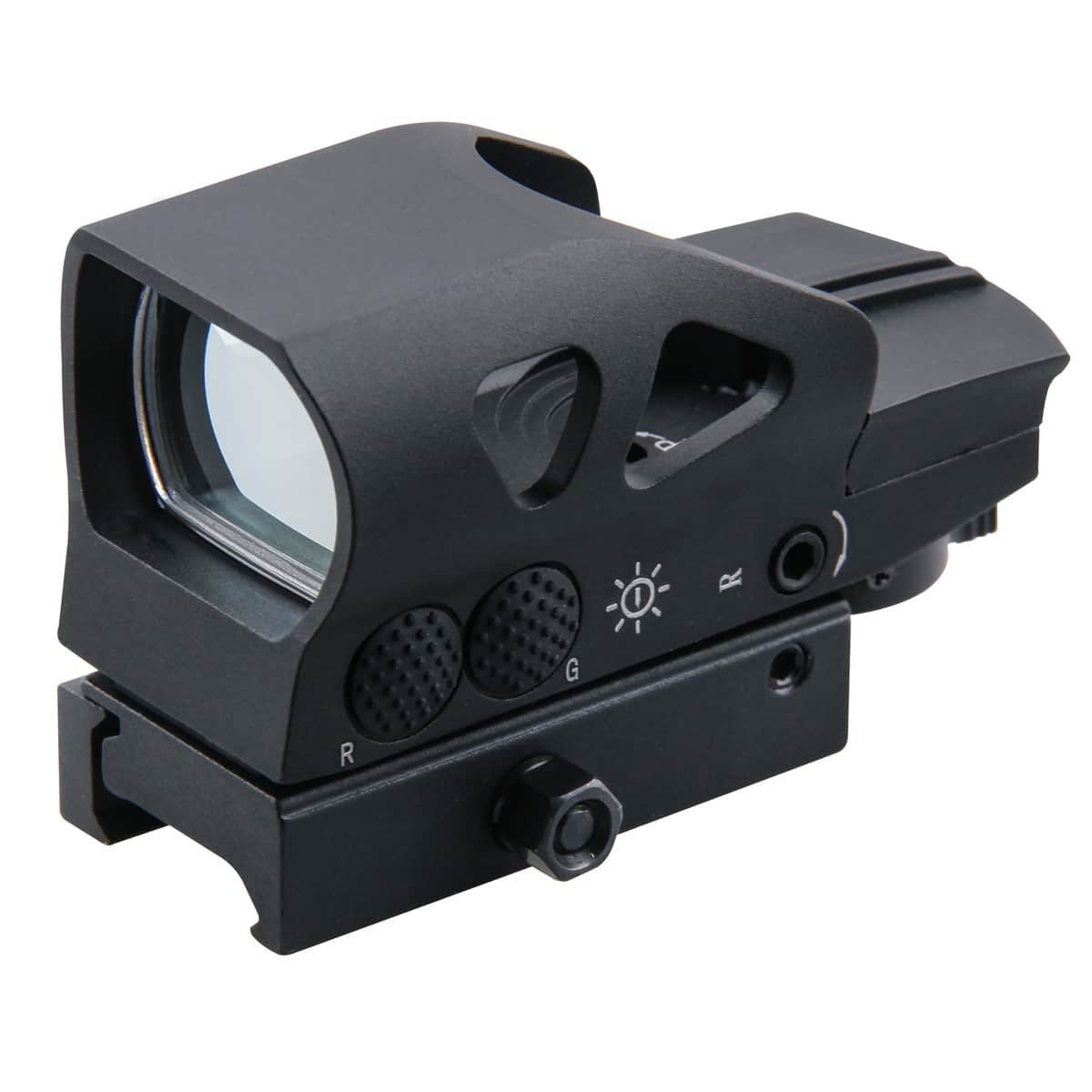

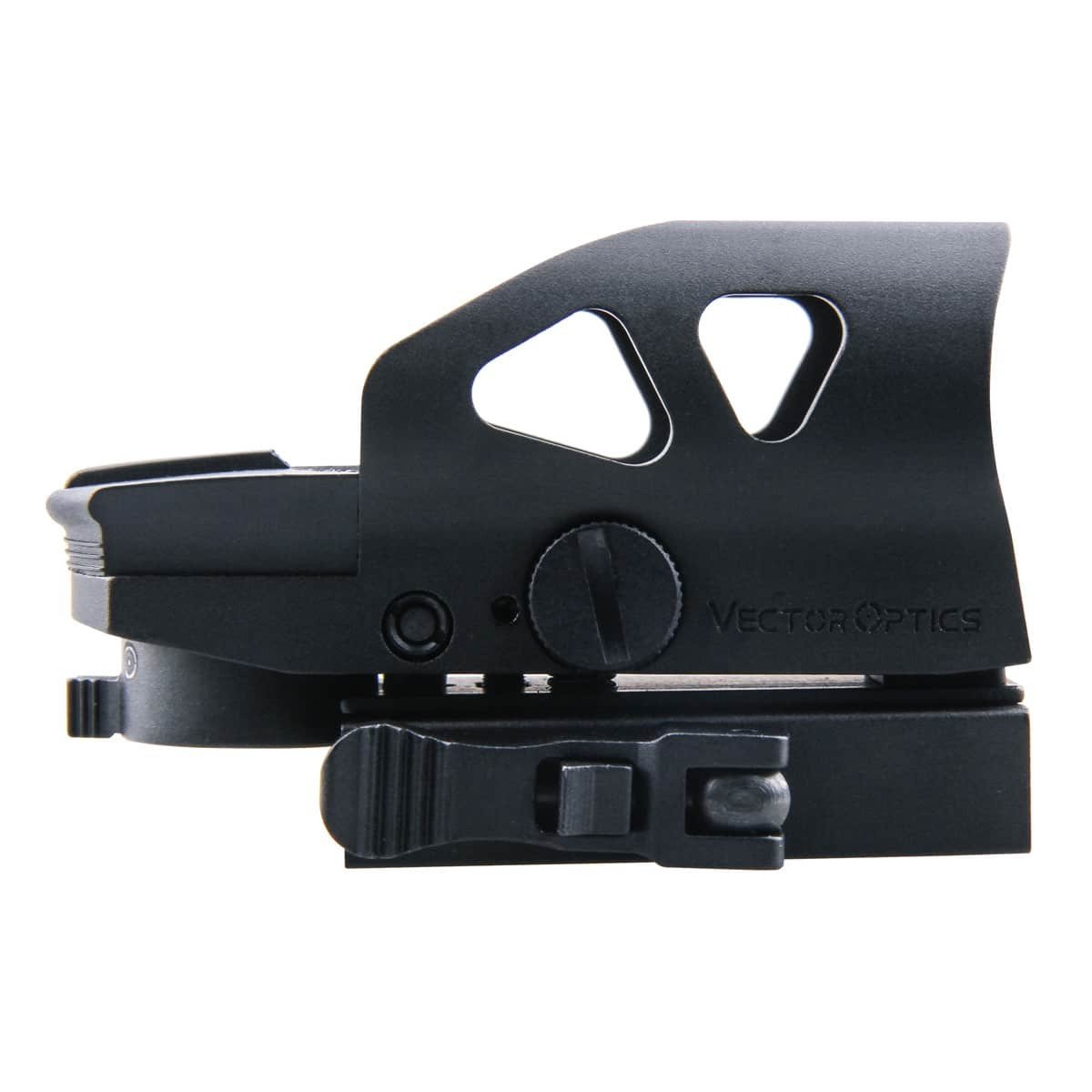

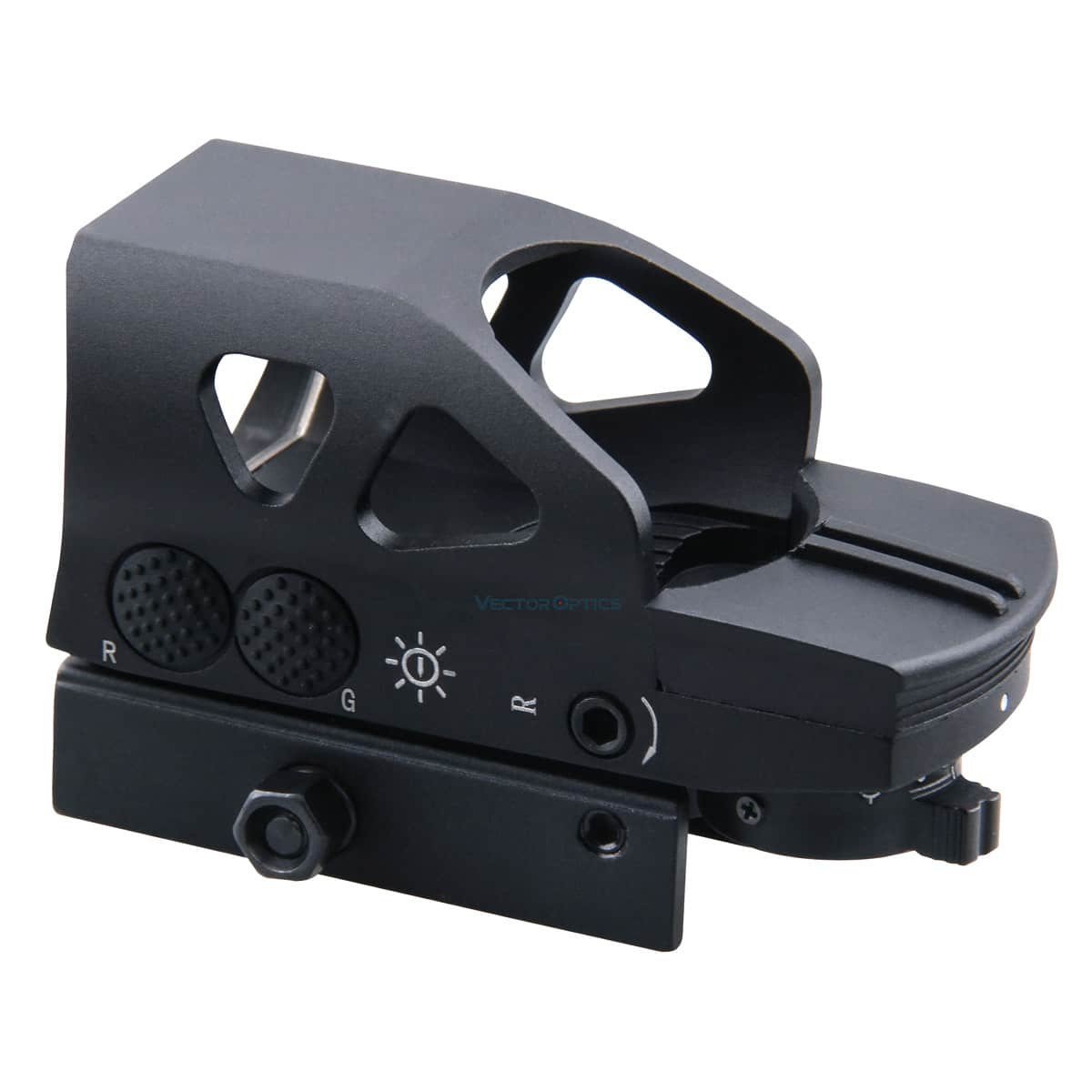

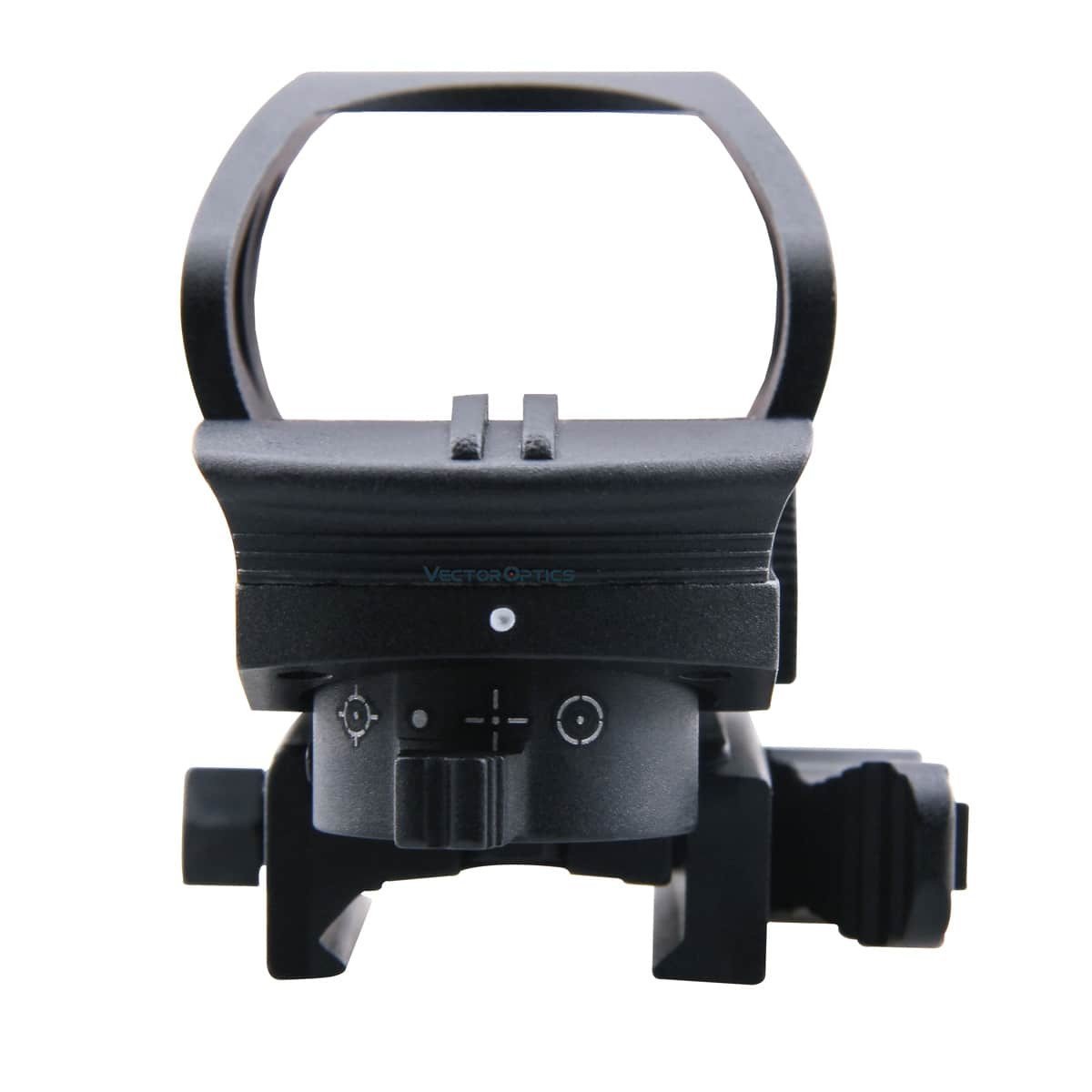

Vector Optics Ratchet Gen 2 1x23x34 R&G Dot Sight SCRD-23

Features

• Light and Compact
• Quick Release 21mm Mount Base
• Four Kinds of Reticles
• Design for Real Fire Calibre and Ammunition

Specifications

• Magnification: N/A
• Tubeless Sight Window Lens Size: 23x34mm

• Exit Pupil: 22-23mm

• Overall Length: 82mm (3.2 inches)

• Width (without mount level):30mm (1.2 inches)

• Height: 48mm (1.9 inches)

• Weight (net):140g (4.9 ounces)

• Eye Relief: Free

• Optics Coating: Multi-Coated

• Brightness levels: 5

• Parallax: 1 MOA at 80 yards

• Elevation Range: 60 MOA

• Windage Range: 60 MOA

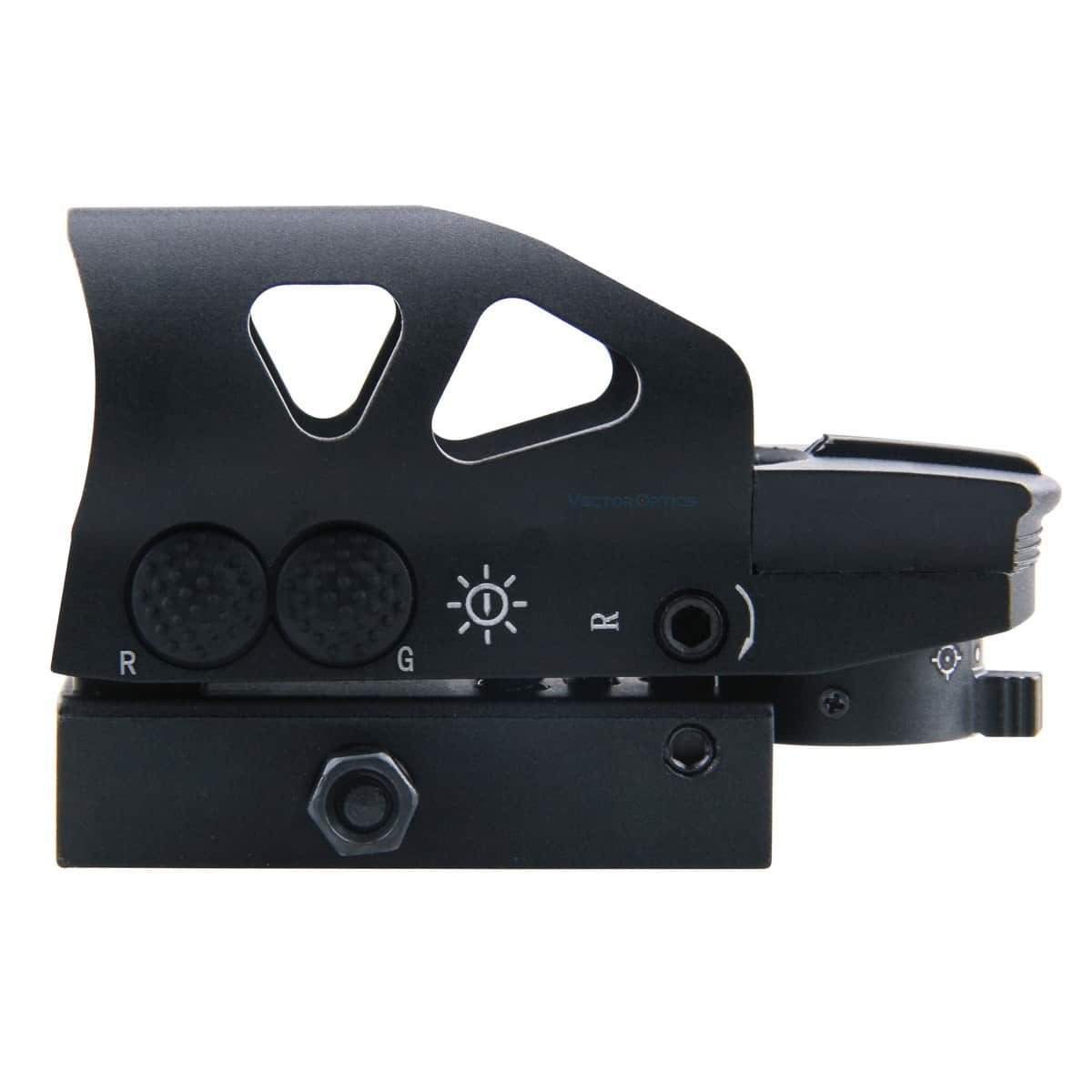

• Front switch for red colour reticle and rear switch for green colour reticle

• Reticle: 4 kinds of reticles; reticle exchange with an audible click

• Feature 1 M.O.A (50 Yards) windage and elevation

• Shockproof, Rain Proof and Fog Proof

• 5 levels of brightness for green and red colour. Push 3 seconds to shut down the sight.

• High-quality aluminium alloy in durable black matte finish

• With reticle lock feature

• Integrated 21mm weaver quick-release mount

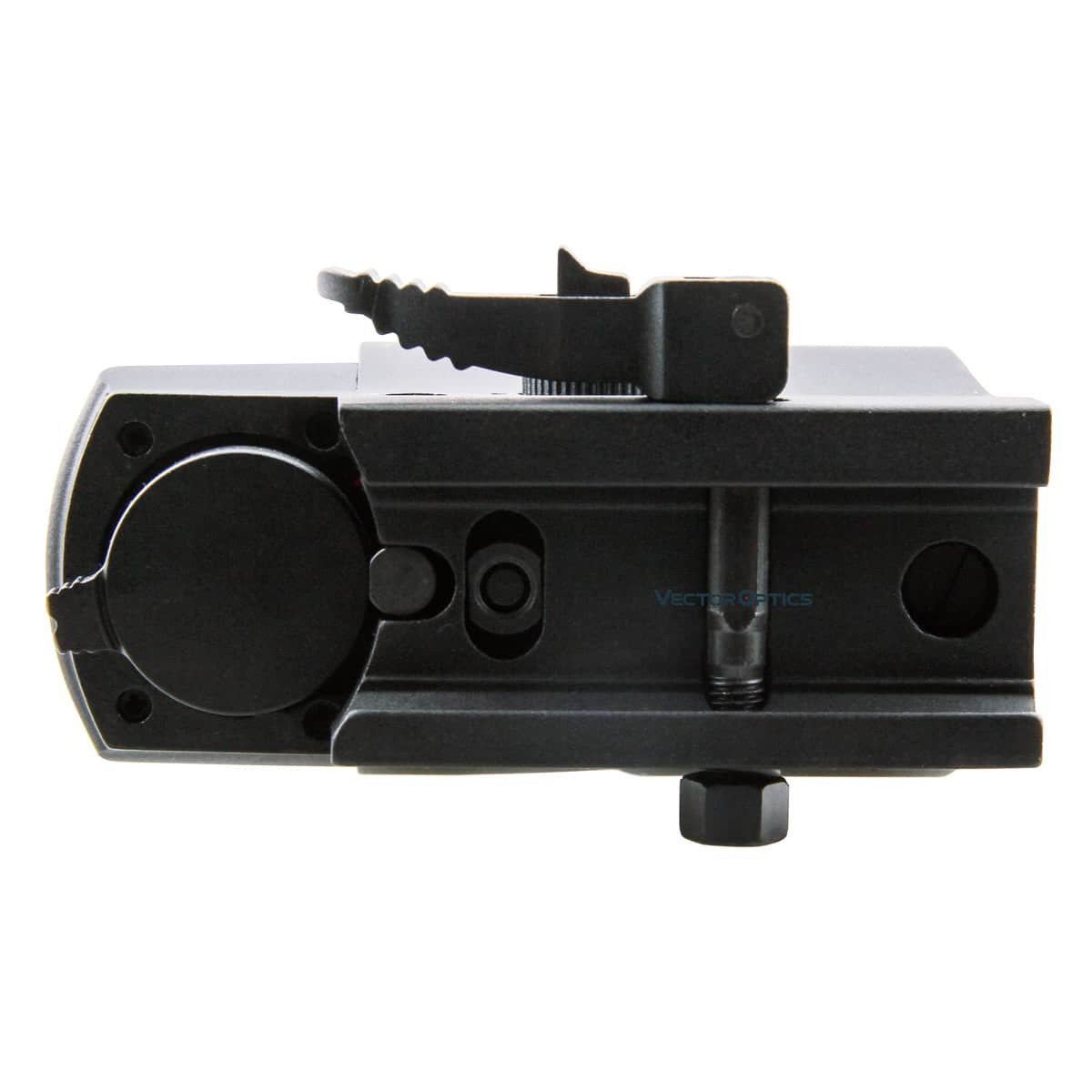

• To exchange battery:

• Use a coin to loosen the cap

• Take out the used battery

• Exchange with 3 new pcs of LR754 button batteries

• Refasten the cap again


Includes

• X1 R/G dot Sight
• X2 hex keys
• cleaning cloth
